PVC–Aluminium Flexible Duct - ventiloair.in

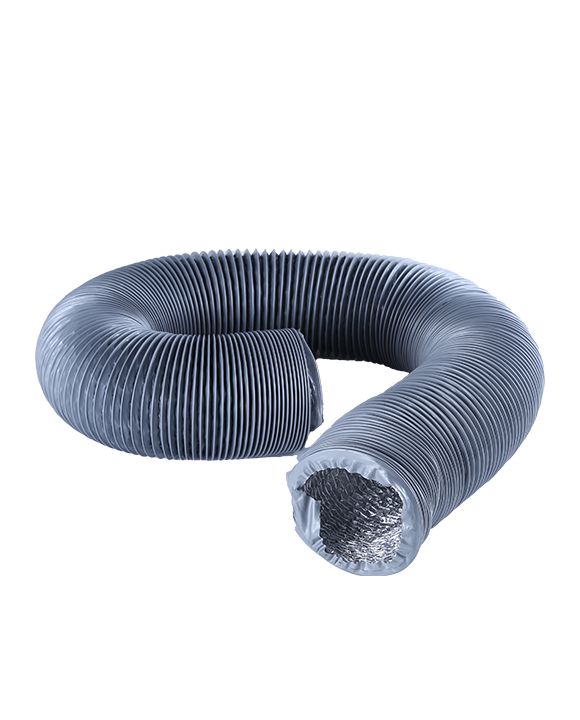

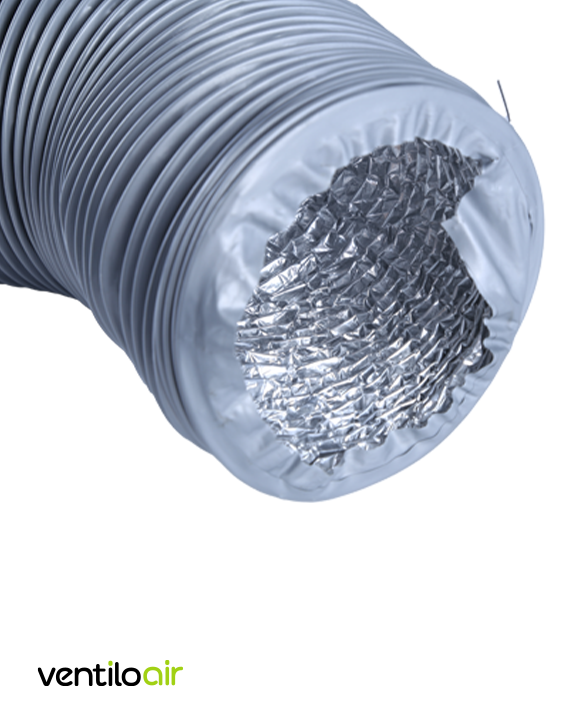

PVC–Aluminium Flexible Duct

Model	Diameter	Length	Units/Box	Temp Rating	Construction
L322	Ø80 mm	8 m	40	−10 to 120 °C	Triple‑layer laminate; steel helix
L323	Ø105 mm	8 m	30	−10 to 120 °C	Triple‑layer laminate; steel helix
L324	Ø110 mm	8 m	28	−10 to 120 °C	Triple‑layer laminate; steel helix
L325	Ø127 mm	8 m	23	−10 to 120 °C	Triple‑layer laminate; steel helix
L326	Ø150 mm	8 m	16	−10 to 120 °C	Triple‑layer laminate; steel helix
L327	Ø160 mm	8 m	12	−10 to 120 °C	Triple‑layer laminate; steel helix
L328	Ø180 mm	8 m	11	−10 to 120 °C	Triple‑layer laminate; steel helix
L329	Ø200 mm	8 m	9	−10 to 120 °C	Triple‑layer laminate; steel helix

Bend Radius: ~1× diameter minimum recommended for low noise and low pressure drop.
Fire/Smoke: Follow local code; use metal duct or approved fire‑rated ducting where required.
